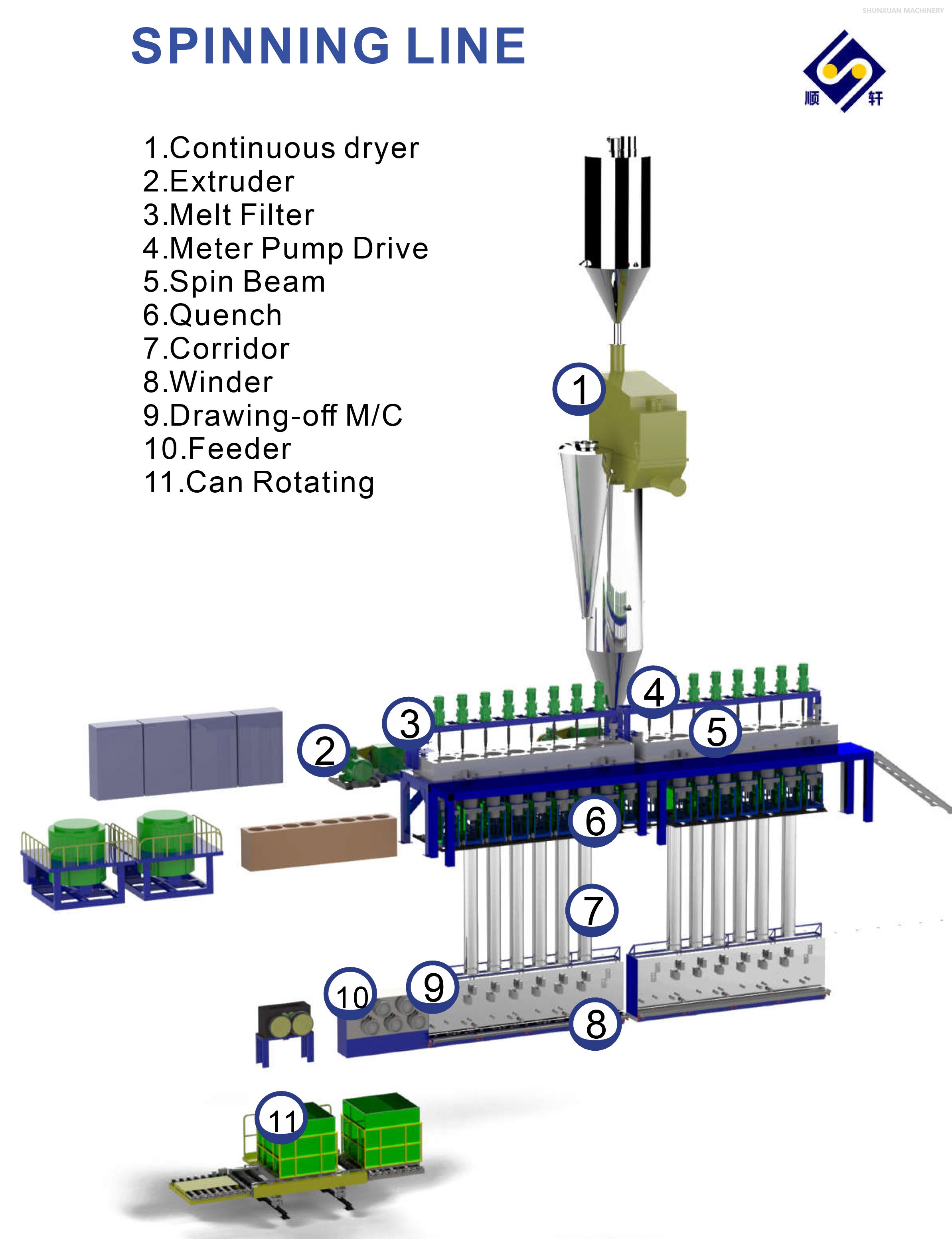

1. Main production line for spinning
It mainly consists of extruder, filter, spinning insulation beam, thermal agent circulation system, metering pump, pump driving system, spin pack, blasting device, winding machine and yarn can traverse system.
2 Auxiliary production units, including
Dissembling, cleaning, assembling, preheating of spin pack; testing of spinneret and preparation of sand; preparation of finish oil; air conditioning and ventilation; physical and chemical detection.
3 General facilities, including
Electric substation, water supply, compressed air system and other comprehensive facilities.
Spinning Part
Capacity: 10-120 Ton Per Day
Brand: Shunxuan
Original: China
Drying system: Vacuum dryer or continous drying system
Product: 1.5D-30D soild fiber or 3D-15D hollow fiber
Recycled bottle flake get dryed first, and goes into screw extruder for melt, then the melt will be purified by filter. Melt get distributed by meter pump and goes into spin beam for the second filtration and then become fiber tow after spinneret and cooling system.
Finishing part
Capacity: 20-120 Ton per day
Brand: Shunxuan
Original: China

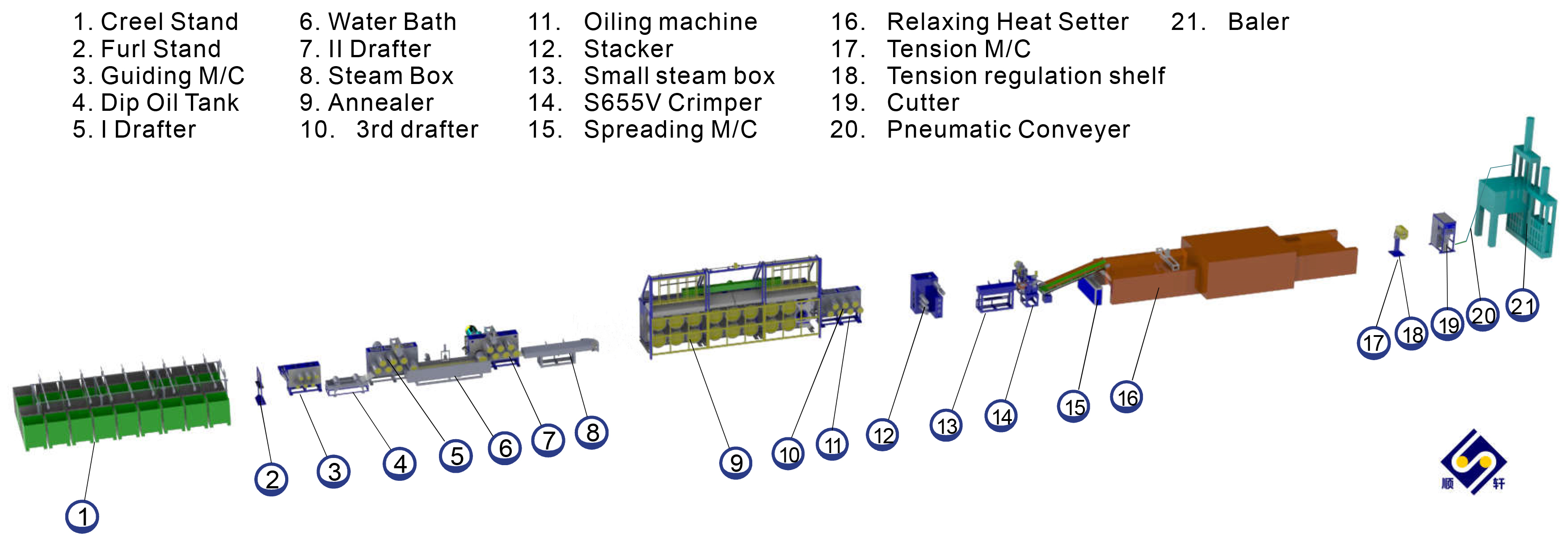

The Finishing line consists of the process of creeling, drawing, setting, crimping, cutting and baling etc.
The tow is collected through the creel stand from the fiber can, then comes to the drawing field, by oil diping, steaming, stretching, the fiber tow get more strength and get required denier. Finally baled after heat setting and cutting process.
* Inquiry and consulting support.
* Layout and drawing design according to customer land space.
* View our Factory and working line
* Project feasibility evalution asist
* Training how to use the machine
* Engineers available to service machinery overseas.
* Process team available for asist daily production
